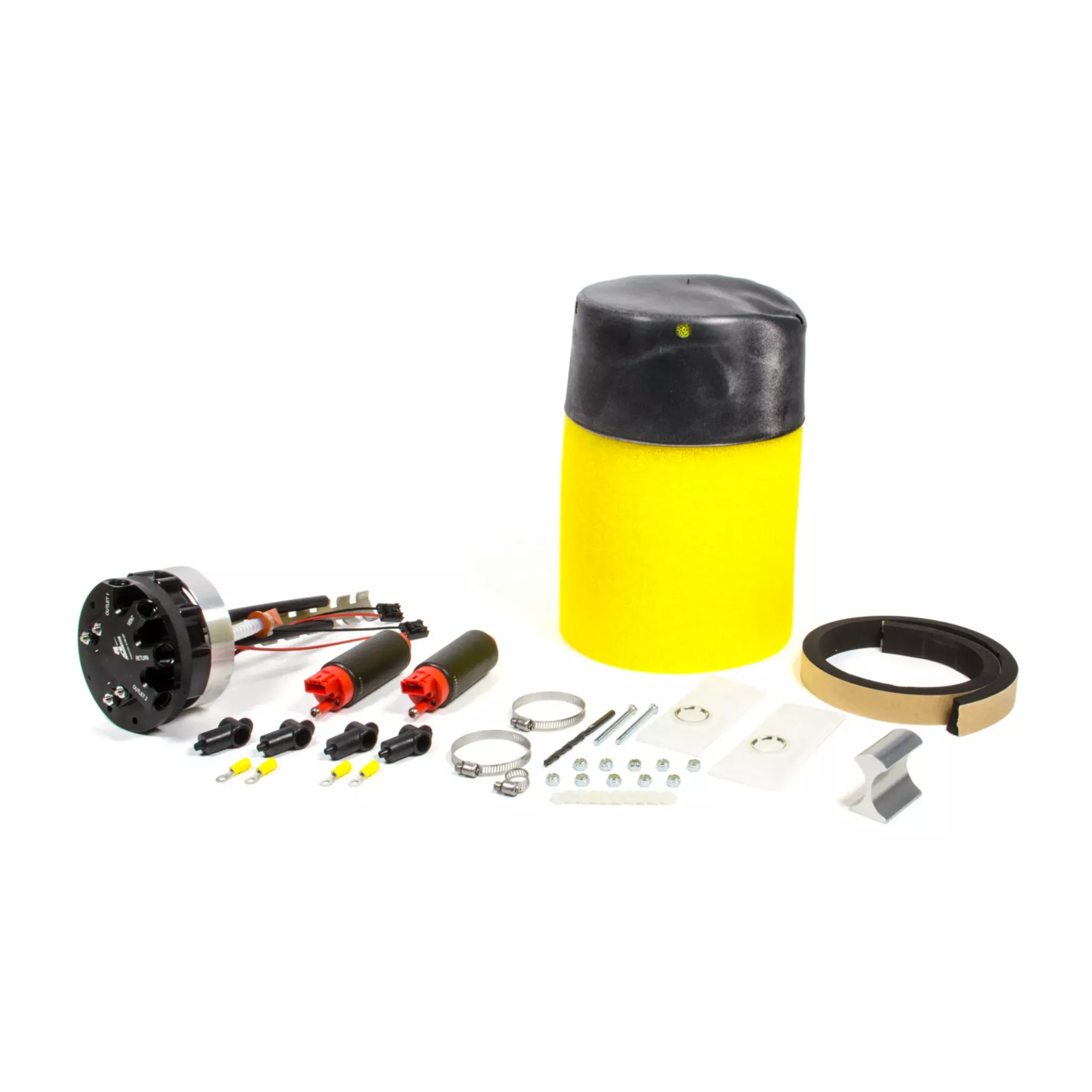

The Phantom Flex provides easy installation for E85 fuel use in virtually any fuel tank for EFI and carbureted applications. The system includes a 450 LPH Phantom electric fuel tank, a large foam bladder designed to feed and combat fuel slosh and a universal high-flow pre-pump filter. Black anodized top hat with three (3) -6AN ORB ports supply/return/vent and wiring connections. Sold as a kit.
- Fuel Pump
- Phantom Flex
- Electric
- In-Tank
- 450 gph at 90 psi
- 6 AN Female O-Ring Inlet
- 6 AN Female O-Ring Outlet
- Install Kit
- E85 / Gas
- Sold as a Kit
- MPN: 18310
| Brand | Aeromotive |
| Part Number | 18310 |
| Product Line | Phantom Flex |
| Electric/Mechanical | Electric |
| In-Tank/Inline | In-Tank |
| In-Tank Flange Bolt Quantity | 10 Bolt |
| In-Tank Depth Minimum | 6 in |
| In-Tank Depth Maximum | 11 in |
| Outlet Size | 6 AN |
| Outlet Style | Female |
| Outlet O-Ring | Yes |
| Return Port Size | 6 AN |
| Return Port Style | Female |
| Return Port O-Ring | Yes |
| Vent Port Size | 6 AN |
| Vent Port Style | Female |
| Vent Port O-Ring | Yes |
| Free Flow lph | 450 lph |
| Fuel Pickup Included | Yes |
| Fuel Pickup Style | Filter Sock |
| Gasoline Compatible | Yes |
| Diesel Compatible | No |
| Methanol Compatible | No |
| E85 Compatible | Yes |
| Hardware Included | Yes |
| Mounting Collar Included | Yes |
| Internal Baffle | Yes |
| Material | Aluminum |
| Color | Black |
| Finish | Anodize |
| Quantity | Each |
