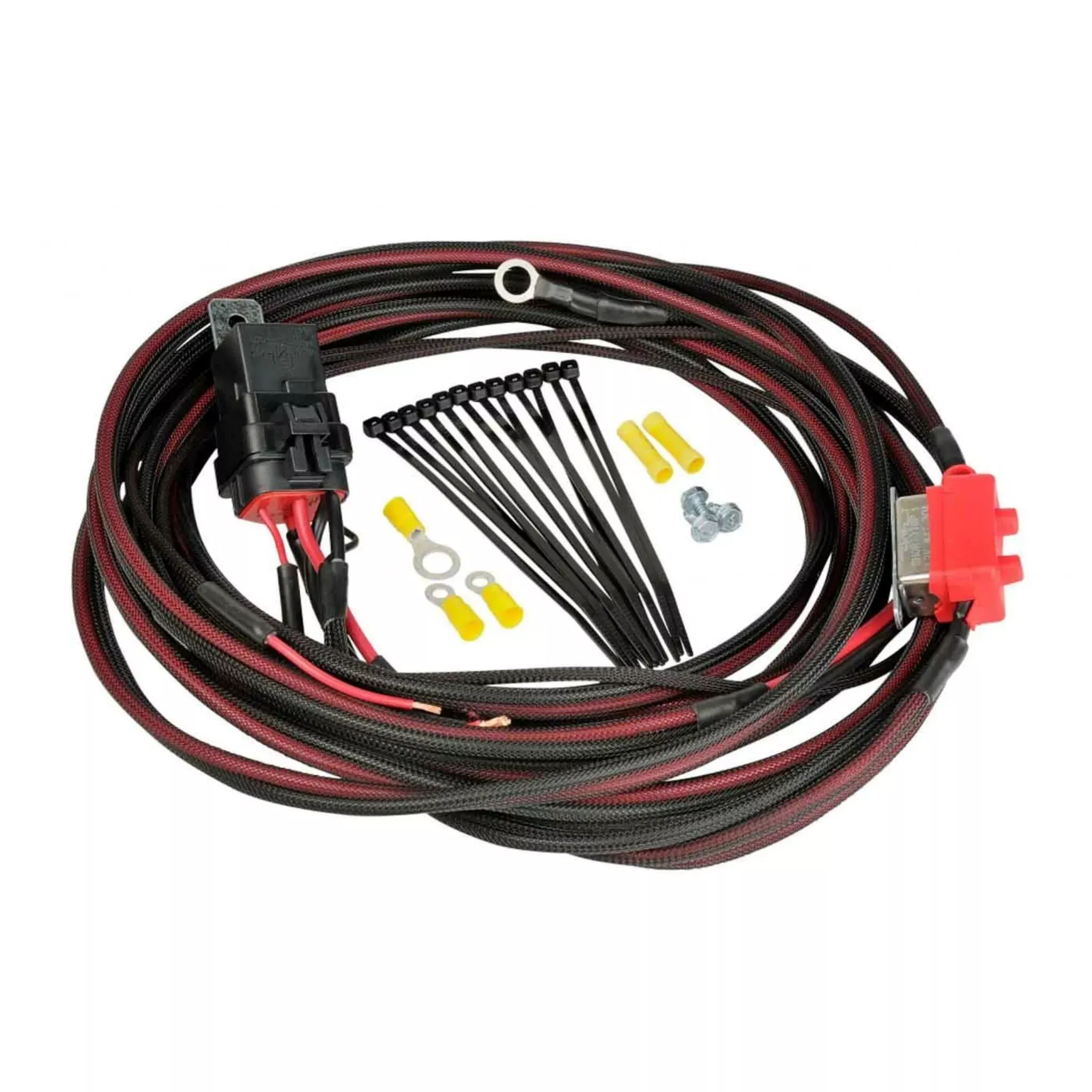

The kit includes automotive relay, circuit breaker, 1′ of 10-ga. of black ground wire, 4′ of 10-ga. red battery wire, 10′ of 16-ga. red trigger wire, 18′ of fuel pump power/ground wire, cable ties, self-drilling screws, terminal crimping tool, and 5/16″ nut driver.
- Fuel Pump Wiring Harness
- 30 amp
- Connectors / Relay / Wire / Cable Ties
- Sold as a Kit
- MPN: 16307
| Brand | Aeromotive |
| Part Number | 16307 |
| Product Line | Phantom |
| Intended Application | Fuel Pump |
| Side 1 Connection Style | Male | Female Plug |
| Side 2 Connection Style | Wire Ends |
| Assembled | Yes |
| End 1 Number of Pins | 5 |
| Number of Wires | 4 |
| Wire 1 Gauge | 10 |
| Wire 2 Gauge | 10 |
| Wire 3 Gauge | 16 |
| Wire 4 Gauge | 10 |
| Wire 1 Length | 18 ft |
| Wire 2 Length | 4 ft |
| Wire 3 Length | 10 ft |
| Wire 4 Length | 1 ft |
| Terminals Included | Yes |
| Terminal Style | Eyelet |
| Number of Butt Connectors | 2 |
| Number of Eyelets | 4 |
| Amperage | 30 amp |
| Wire Ties Included | Yes |
| Number of Wire Ties | 12 |
| Hardware Included | Yes |
| Insulated | Yes |
| Material | Rubber |
| Finish | Coated |
| Quantity | Kit |
