Triple pass radiators circulate coolant across the top portion of the radiator, back across the mid-section and through the bottom allowing maximum heat dissipation. This style radiator requires a high flow water pump to be most effective. These radiators feature a universal 1-5/8”-12 ORB fitting inlet design that allows for multiple inlet fitting options (sold separately). The lower outlet is a fully welded 1-3/4” standard hose fitting for push-on style radiator hoses.

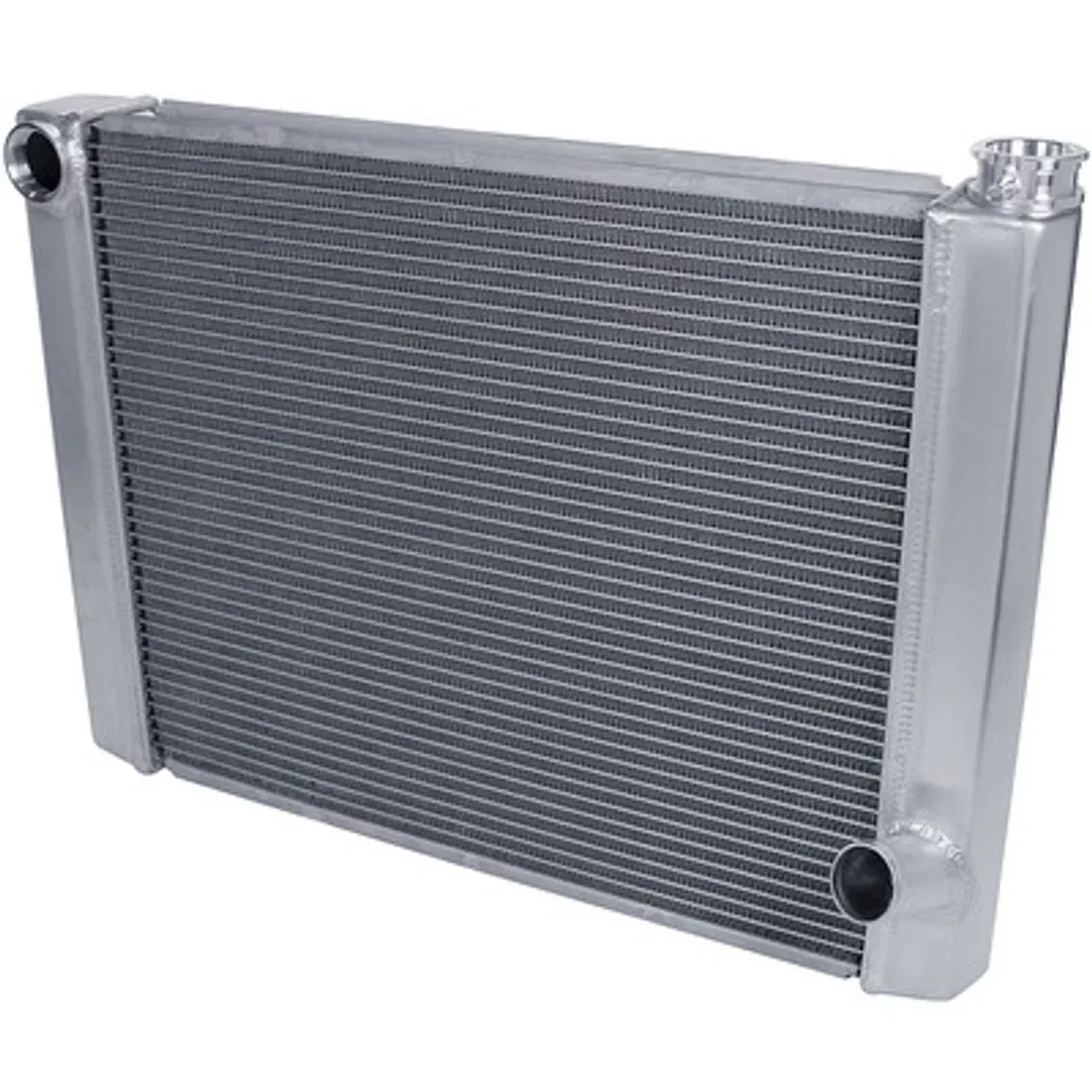

Radiator – 28 in W x 19 in H x 2-1/4 in D – Triple Pass – Driver Side Inlet – Passenger Side Outlet – Aluminum – Natural – Each
| Brand | Allstar Performance |
| Part Number | ALL30047 |
| Universal | Yes |
| Pass | Triple |
| Row Number | 2 |
| Overall Width | 28 in |
| Overall Height | 19 in |
| Overall Depth | 2.25 in |
| Core Width | 23 in |
| Core Height | 18 in |
| Inlet Side | Driver Side |
| Inlet Upper/Lower | Upper |
| Inlet A Size | 20 AN |
| Inlet A Style | Female |
| Inlet O-Ring | Yes |
| Inlet Quantity | 1 |
| Outlet Side | Passenger Side |
| Outlet Upper/Lower/Middle | Lower |
| Outlet A Size | 1.75 in |
| Outlet A Style | Hose Barb |
| Outlet Quantity | 1 |
| Tube Size | 1 in |
| Flow Direction | Crossflow |
| Cap Included | No |
| Filler | Yes |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
| Note | Inlet Fittings Sold Separately |
