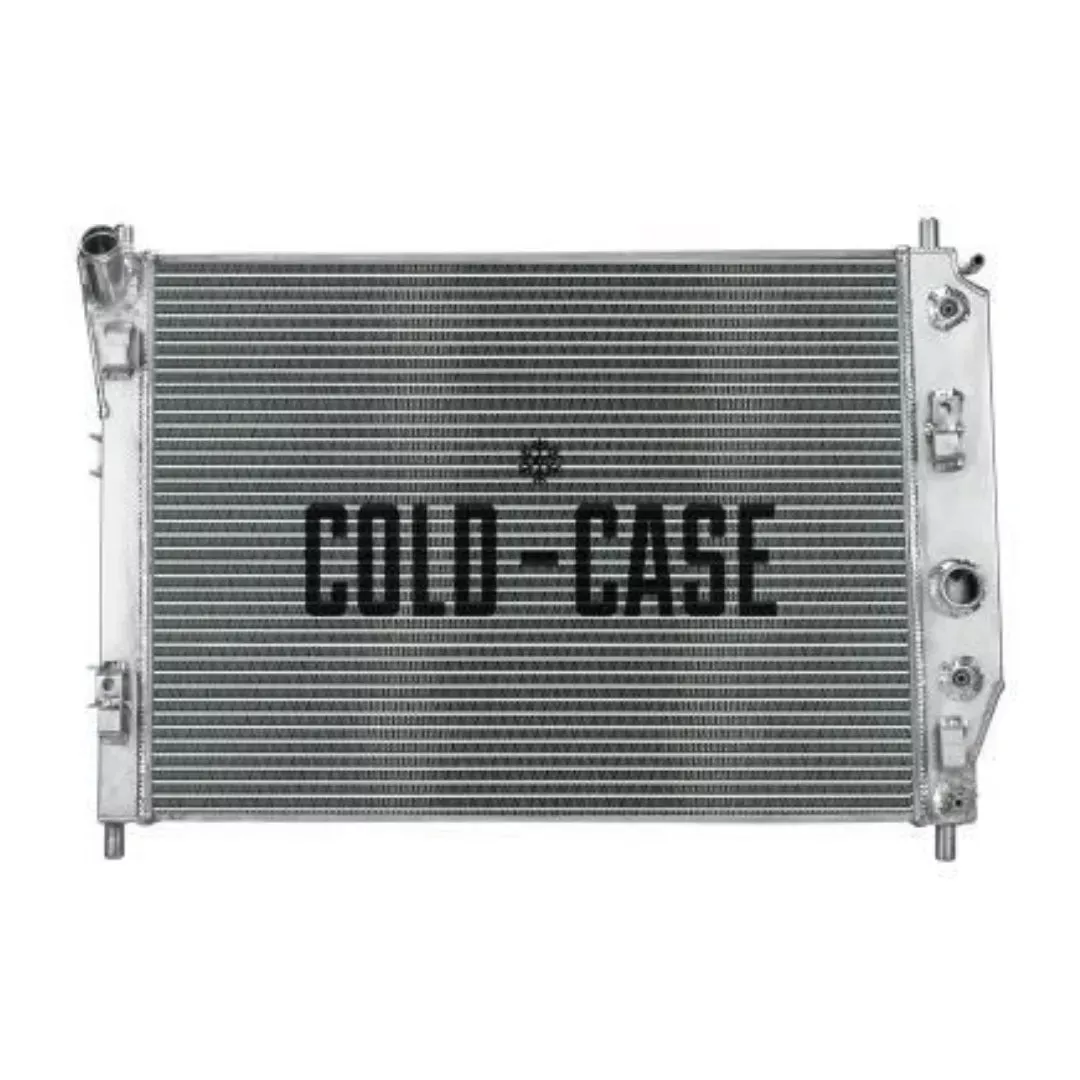

2005-2013 Chevrolet C6 Corvette Aluminum Performance Radiator. Not for Z-51 models. Does not have additional engine oil cooler built in.
These COLD-CASE radiators are Tig welded 100% aluminum and absolutely beautiful.
Don’t buy a 3 or 4 row aluminum radiator! It doesn’t cool as good as these oversize 2 row models.
- 100% TIG welded
- All Aluminum
- Polished tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Direct fitment for all 2005-13 Chevrolet Corvettes
- MPN: CHV722A
Specifications
- Core Height 17.25″
- Overall Height 20.3″
- Overall Width 29″
- Overall Thickness 2.5″
- Tubes (2) 1″ Tubes
- Trans Cooler Fitting 3/8″ Inverted Flare
- Vehicle Type: Car
- Make: Chevrolet
- Fitment: 2005 – 2013 Chevrolet Corvette
| Brand | Cold Case Radiators |
| Part Number | CHV722A |
| Application Specific | Yes |
| Pass | Single |
| Row Number | 2 |
| Overall Width | 29 in |
| Overall Height | 20.297 in |
| Overall Depth | 2.5 in |
| Core Width | 23.5 in |
| Core Height | 17.25 in |
| Inlet Side | Driver Side |
| Inlet Upper/Lower | Upper |
| Inlet A Size | 1.875 in |
| Inlet A Style | Hose Barb |
| Inlet Quantity | 1 |
| Outlet Side | Passenger Side |
| Outlet Upper/Lower/Middle | Center |
| Outlet A Size | 1.875 in |
| Outlet A Style | Hose Barb |
| Outlet Quantity | 1 |
| Tube Size | 1 in |
| Fluid Cooler | Yes |
| Fluid Cooler Line Inlet Size | 3/8 in Inverted Flare |
| Fluid Cooler Line Inlet Style | Female |
| Fluid Cooler Line Outlet Size | 3/8 in Inverted Flare |
| Fluid Cooler Line Outlet Style | Female |
| Flow Direction | Crossflow |
| Cap Included | No |
| Filler | Yes |
| Material | Aluminum |
| Color | Polished |
| Finish | Polished |
| Quantity | Each |
