FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip® technology, FRAM Extra Guard® oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles.
- Proven protection for up to 10,000 miles
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
FRAM Extra Guard provides the perfect balance of dirt-trapping efficiency and dirt-holding capacity.
| Make | Model | Year | Engine | Notes |
| BUICK | ENCORE | 2016-2019 | L4 1.4L | LE2 Engine Spin-on |
| BUICK | ENCORE GX | 2020-2022 | L3 1.2L | |
| BUICK | ENVISION | 2016-2020 | L4 2.0L | |
| BUICK | ENVISION | 2017-2020 | L4 2.5L | |
| BUICK | LACROSSE | 2018-2019 | L4 2.5L | |
| BUICK | REGAL | 2014-2017 | L4 2.0L | |
| BUICK | REGAL SPORTBACK | 2018-2020 | L4 2.0L | |
| BUICK | REGAL TOURX | 2018-2020 | L4 2.0L | |
| CADILLAC | ATS | 2013-2019 | L4 2.0L | |
| CADILLAC | ATS | 2013-2017 | L4 2.5L | |
| CADILLAC | CT5 | 2022 | V8 6.2L | |
| CADILLAC | CT6 | 2016-2019 | L4 2.0L | Vin:X |
| CADILLAC | CTS | 2014-2019 | L4 2.0L | |
| CADILLAC | CTS | 2016-2019 | V8 6.2L | |
| CHEVROLET | BLAZER | 2019-2021 | L4 2.5L | |
| CHEVROLET | CAMARO | 2016-2022 | L4 2.0L | |
| CHEVROLET | CAMARO | 2016-2022 | V8 6.2L | |
| CHEVROLET | CAPTIVA SPORT | 2012 | V6 3.0L | |
| CHEVROLET | COLORADO | 2015-2022 | L4 2.5L | |
| CHEVROLET | CORVETTE | 2014-2022 | V8 6.2L | |
| CHEVROLET | CRUZE | 2016-2019 | L4 1.4L | |
| CHEVROLET | EQUINOX | 2018-2022 | L4 1.5L | |
| CHEVROLET | EQUINOX | 2018-2020 | L4 2.0L | |
| CHEVROLET | IMPALA | 2014-2019 | L4 2.5L | |
| CHEVROLET | IMPALA | 2013 | V6 3.6L | Police package |
| CHEVROLET | IMPALA LIMITED | 2014-2015 | V6 3.6L | |
| CHEVROLET | MALIBU | 2016-2022 | L4 1.5L | |
| CHEVROLET | MALIBU | 2013-2022 | L4 2.0L | |
| CHEVROLET | MALIBU | 2013-2015 | L4 2.5L | |
| CHEVROLET | MALIBU LIMITED | 2016 | L4 2.5L | |
| CHEVROLET | SPARK | 2016-2022 | L4 1.4L | |
| CHEVROLET | TRAILBLAZER | 2021-2022 | L3 1.2L | |
| CHEVROLET | TRAVERSE | 2018-2019 | L4 2.0L | |
| CHEVROLET | TRAX | 2021-2022 | L4 1.4L | Spin-on |
| CHEVROLET | VOLT | 2016-2019 | L4 1.5L | |
| GMC | ACADIA | 2017-2021 | L4 2.5L | |
| GMC | CANYON | 2015-2022 | L4 2.5L | |
| GMC | TERRAIN | 2018-2022 | L4 1.5L | |
| GMC | TERRAIN | 2018-2021 | L4 2.0L |
Competitor Comparison
| Competitor Name | Competitor Part Number |
| AC-DELCO | PF64 |
| AC-DELCO | UPF64R |
| CARQUEST PREMIUM | 95140 |
| CARQUEST STANDARD | R95140 |
| Certified | CPH12060 |
| CHAMP | PH10064 |
| DEFENSE | DL12060 |
| FRAM CORE | COR12060ACC |
| FRAM Drive | FD12060 |
| FRAM Force | FF12060 |
| FRAM Titanium | FS12060 |
| GENERAL MOTORS | 12640445 |
| GENERAL MOTORS | 12667194 |
| GENERAL MOTORS | 12670058 |
| GENERAL MOTORS | 12674698 |
| GENERAL MOTORS | 12696048 |
| GENERAL MOTORS | 12706595 |
| GENERAL MOTORS | 650237 |
| LUBER-FINER | PH10064 |
| LUBER-FINER | PH488 |
| MICROGARD | MGL10290 |
| MICROGARD/WIX | MGL10290 |
| MOBIL | MO2222 |
| MOBIL 1 | M1-113A |
| MOTOMASTER | MPH12060 |
| NAPA | 100290 |
| NAPA GOLD | 7060 |
| NAPA PLATINUM | 4100290 |
| NAPA PLATINUM | 47060 |
| NAPA PROSELECT | 2100290 |
| NAPA PROSELECT | 27060 |
| NAPA SILVER | 3100290 |
| NAPA SILVER | 37060 |
| PARTS MASTER | WL610290 |
| PARTS MASTER | WL610290BP |
| PENNZOIL | PZ194 |
| PUROLATOR | L11403 |
| PurolatorBOSS | PBL11403 |
| PurolatorONE | PL11403 |
| SERVICE CHAMP | HP2222 |
| SERVICE CHAMP | OF2222 |
| STP | S12060 |
| STP Extended Life | S12060XL |
| TOUGH GUARD | TG12060 |
| ULTRA | XG12060 |
| WARNER | WPH488 |
| WIX | WL10290 |
| WIX | WL10290XP |
| Brand | FRAM |
| Part Number | PH12060 |
| Product Line | Extra Guard |
| Application Specific | Yes |
| Filter Style | Canister |
| Housing Style | Smooth |
| Bypass | Yes |
| Bypass PSI Minimum | 19 PSI |
| Bypass PSI Maximum | 25 PSI |
| Inlet Size | 22 mm x 1.5 |
| Inlet Style | Female |
| Anti-Drain Back Valve | Yes |
| Height | 3.33 in |
| Diameter | 3 in |
| Rubberized Grip | Yes |
| Material | Steel |
| Color | Orange |
| Finish | Paint |
| Quantity | Each |

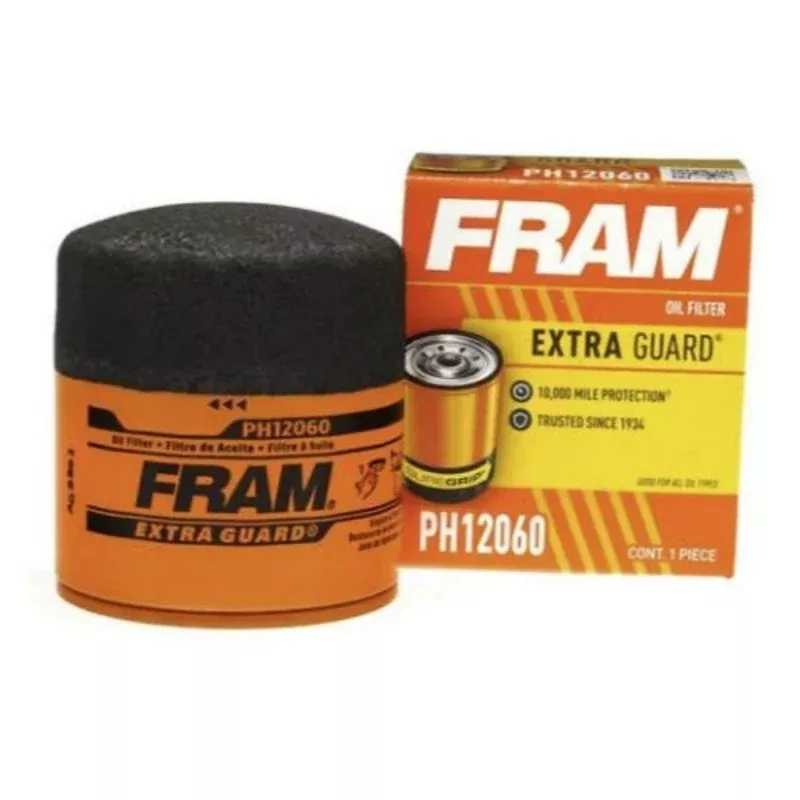

Oil Filter – Extra Guard – Canister – Screw-On – 3.33 in Tall – 22 mm x 1.50 Thread – Steel – Orange – Various Applications – Each – MPN: PH12060
