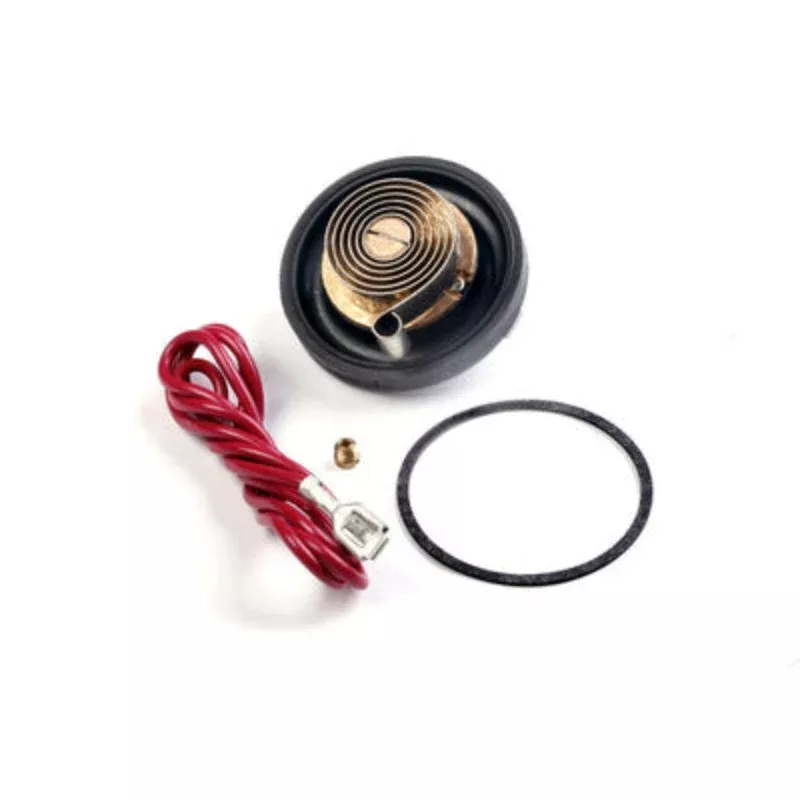

Choke Cap – Electric – Gasket – Holley 4165 / 4175 / 4360 Carburetors – Kit – MPN: 45-230
| Brand | Holley |
| Part Number | 45-230 |
| Component Type | Choke Cap |
| Electric / Manual | Electric |
| Cap Style | 1 Wire |
| Mounting Location | Carburetor |
| Wiring Included | Yes |
| Gasket Included | Yes |
| Hardware Included | Yes |
| Material | Plastic |
| Color | Black |
| Finish | Natural |
| Quantity | Kit |
Installation of Electric Choke: Holley Model 4360 Kit 45-230.
- Remove carburetor from engine, marking all vacuum line connections and throttle linkage connections.
- Drain fuel from carburetor.
- Turn carburetor upside down.
- Remove threaded restriction with screwdriver located next to upper right throttle plate.
- Install new restriction plug (provided in kit) with screwdriver.
- Turn carburetor back over, remove choke cap by removing three screws.
- Install electric cap making sure that the loop on the thermostatic coil is connected to the arm inside the housing.
- Line up the index mark on the cap with the center index mark on the choke housing. Hold in position and tighten three choke cap retaining screws.
- Reinstall carburetor on engine making sure to reconnect all vacuum lines and throttle linkage.
- Attach lead to clip on choke cap. Attach other end of lead to 12V power supply. Do not attach to ignition coil. It is advisable to connect the lead to a source that only has power when the ignition switch is in the run position and not to a safety related terminal such as the windshield wiper motor, headlights, turn signal, or emergency flashers.
