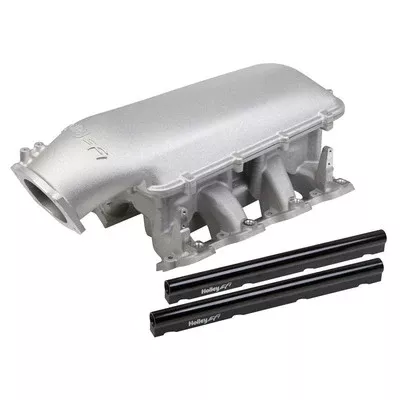

Mid-Rise EFI Manifold – GM LS1/LS2/LS6, Mid-Rise Design, for 92mm Throttle Body
The cost-effective alternative to fabricated intake manifolds where installation height is not a concern. Cast aluminum modular Hi-Ram EFI manifolds are well suited to naturally-aspirated or forced induction applications, providing maximum horsepower at 7,000-8,000 RPM.
- GM LS1/LS2/LS6, Mid-Rise Design, for 92mm Throttle Body
- Intake Manifold
- LS Mid-Rise EFI
- 92 mm Throttle Body Flange
- Multi Port
- Aluminum – Natural
- LS1 / LS2 / LS6 – GM LS-Series
- Kit
- MPN: 300-126
| Brand | Holley |
| Part Number | 300-126 |
| Product Line | LS Mid-Rise EFI |
| Operating Range Low | 1500 RPM |
| Operating Range High | 6500 RPM |
| Removable Top | Yes |
| Throttle Body Quantity | 1 |
| Throttle Body Flange | 92 mm |
| Injector Bungs | Yes |
| Manifold front height | 10.44 in |
| Manifold rear height | 9.99 in |
| Port Size Height | 2.69 in |
| Port Height Width | 0.97 in |
| EGR | No |
| Engine Deck | OEM |
| Gaskets Included | Yes |
| Hardware Included | Yes |
| Fuel Rail Kit Included | Yes |
| Cast/Fabricated | Cast |
| 1-Piece / 2-Piece | 2-Piece |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Kit |
