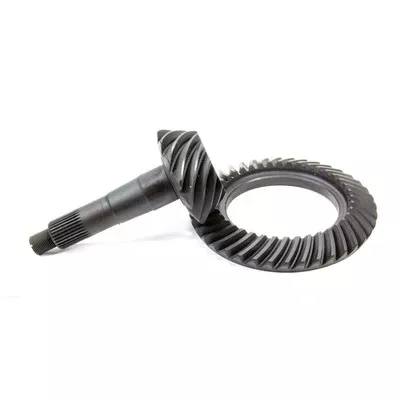

Ring and Pinion – 3.08 Ratio – 30 Spline Pinion – 8.2 in – GM 8-Bolt – Kit
| Brand | Richmond Gear |
| Part Number | 49-0097-1 |
| Ring and Pinion Ratio | 3.08 |
| Carrier Series | 3 |
| Pinion Spline Count | 30 |
| Pinion Gear Tooth Count | 13 |
| Ring Gear Tooth Count | 40 |
| Ring Gear Diameter | 8.2 in |
| Pinion Shaft Diameter | 1.625 in |
| Carrier Breaks | 2.41 to 3.70 |
| Ring Gear Bolt Quantity | 10 |
| Rotation | Standard |
| Ring Gear Alloy | 8620 |
| Installation Kit Included | No |
| Ring Gear Material | Steel |
| Ring Gear Color | Natural |
| Ring Gear Finish | Natural |
| Quantity | Kit |
